Boards/sheets
Stroke your design ambition with our PVC blend-based boards/sheets for Interior and Exterior Solutions
BOARDS/SHEETS

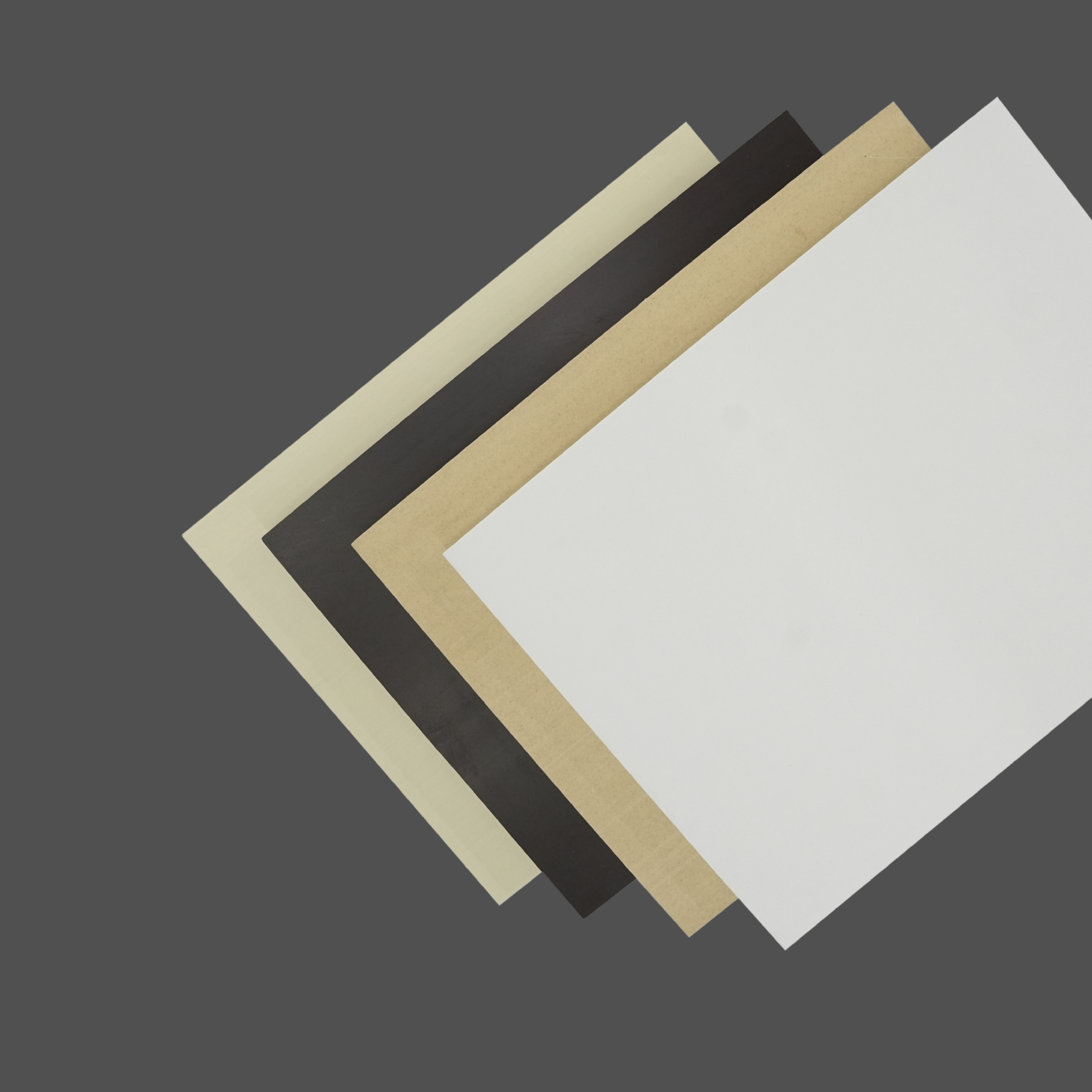

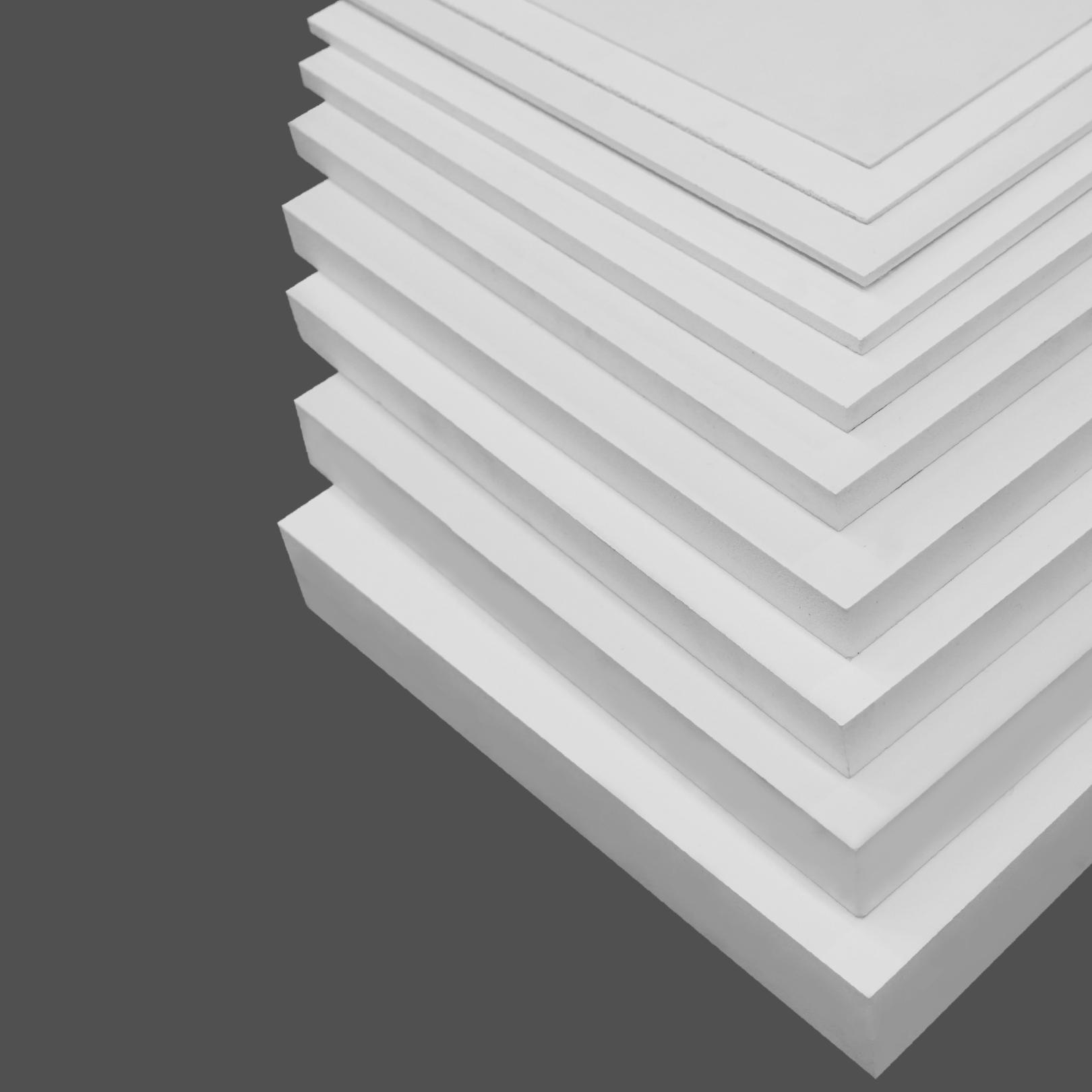

This is one of our category of products. Our boards/sheets are strong, rigid, and durable made from PVC-blend based formulation. They are used in construction and renovation for residential, commercial and industrial applications due to their weather, moisture and termite resistance properties. We manufacturer PVC blend-based boards/sheets from 3 inches to 7 feet wide with a thickness between 0.9 mm and 50 mm.

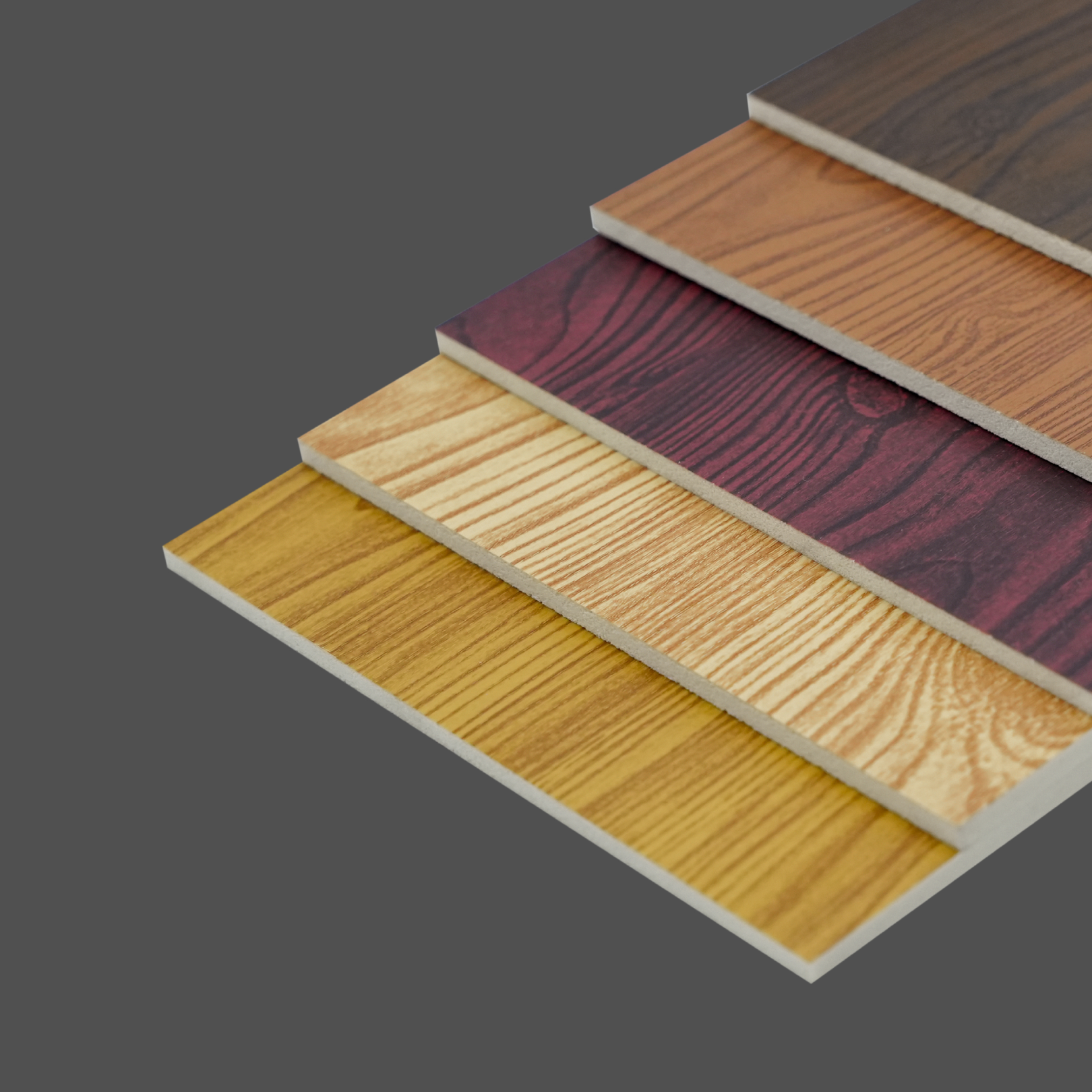

Choose from our add-ons and make our board YOURS – matte finish, wood grain, textures, colours and laminates.
ECHON® MASTER BOARD®
ECHON Master Board is a highly durable and versatile building material suited for residential, commercial, and industrial construction. Its waterproof, fireproof, and termite-resistant properties with superior gloss finish, surface hardness and screw holding capacity make it an effective alternative to traditional wood and MDF. The Master Board is widely used in applications such as furniture, cabinetry, wall panels, ceilings, and more, addressing both construction and renovation needs while offering long-term durability and minimal maintenance. We have conducted tests in our lab that prove that master board is a superior product.
Range of Master Board®

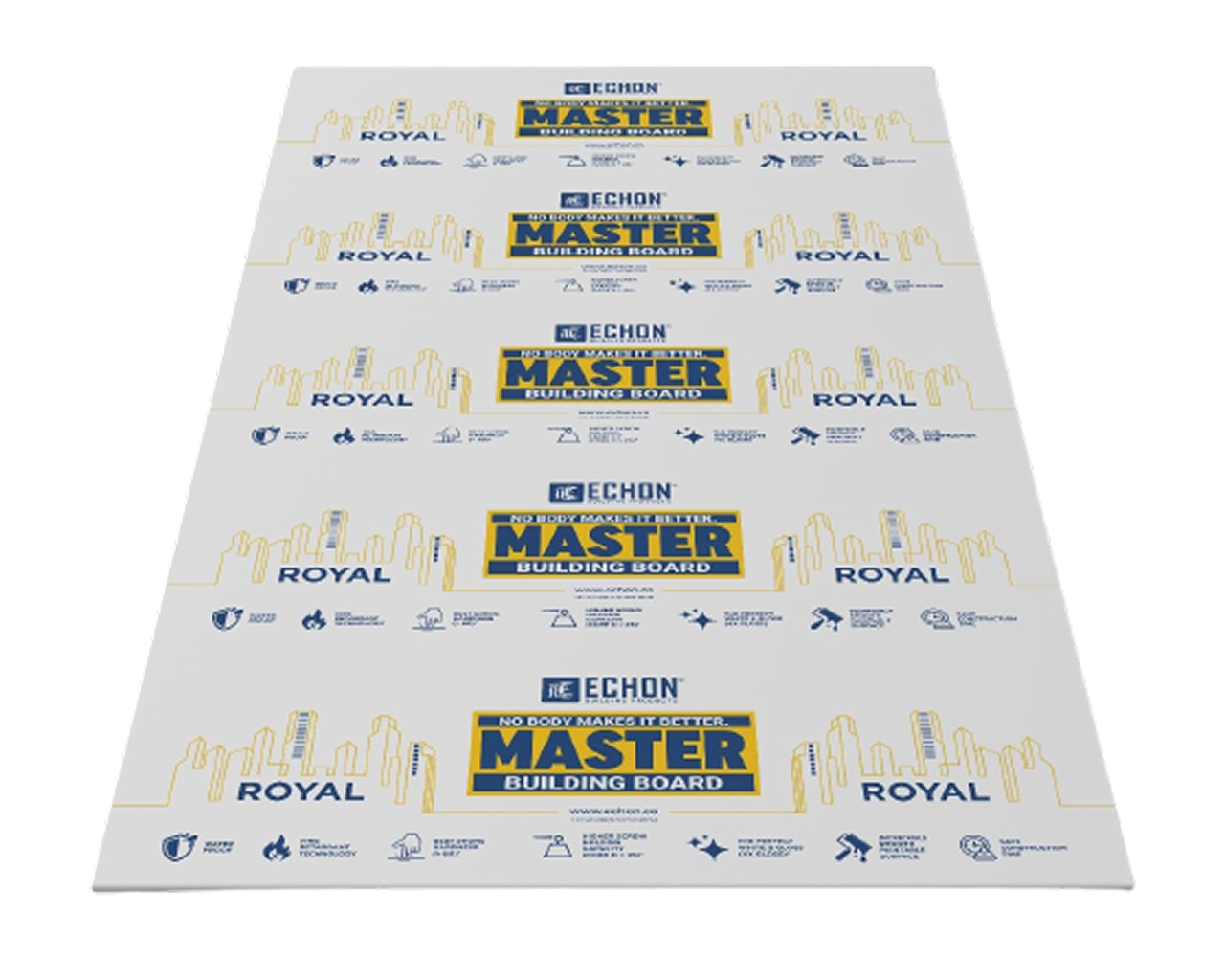

- Master Board® Royal
- Master Board® Gold
Features of Master Board®
ECHON Range of PVC BOARS/SHEETS
ECHON® Premium Board is the most elite offering in the industry that is made out of our proprietary composition with the highest density.
ECHON® Star Board is our next best product with a rich finish.
ECHON® Smart Deluxe is our top selling product that provides optimal composition that can be used across all segments.

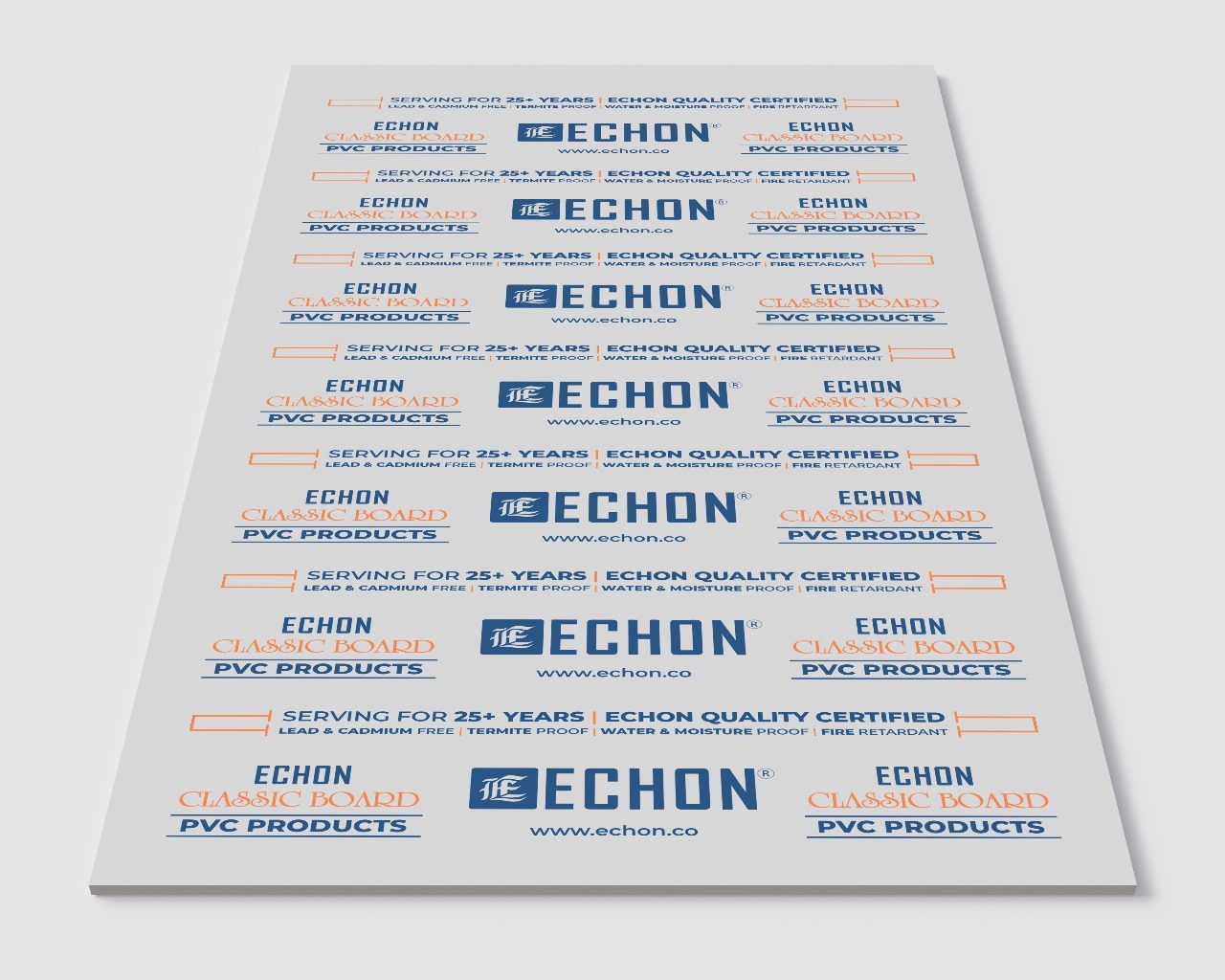

ECHON® Classic Board is our entry level product that has proved its mettle in regulating the unorganized market conditions ruling the current dealer/retail network.
ECHON® Emix Board is our 100% recycled blend with semi/hard surface.
ECHON® WPC Board is a PVC-based formulation blended with natural fibers.
| Size Chart | ||||
|---|---|---|---|---|
|
Thickness (mm) |
Width (ft.) |
|||
|
3′ |
4′ |
5′ |
6′ |
|
|
0.70-10 |
● |
● |
● |
● |
|
11-30 |
● |
● |
● |
|
|
31-50 |
● |
● |
|
|
Length available up to 20′ | Smooth, Gloss or Wood Grain Texture | Custom sizes available demand
| Tolerance | |
|---|---|
|
Length |
+10mm |
|
Width |
+2.5 |
|
Thickness |
± (.08mm + .03mm x Thickness) |
|
Evenness |
Max 1.5 mm/m |
|
Rectangularity |
< = 2.0 mm/m |
|
Linearity |
Max 1.5 mm/m |
| Technical Specifications | |
|---|---|
|
Density |
0.40 – 0.70 g/cc |
|
Tensile Strength |
181 kg/cm2 |
|
Elongation |
15% |
|
Impact Strength |
32 j/m |
|
Shore Hardness A |
Min 50 |
|
Vicat Softening Point |
72° |
|
Elastic Modules |
1000-1400 N/mm2 |
|
Flexural Strength |
374 kg/cm2 |
|
Surface Resistant |
5.103 |
|
Dielectric Puncture Strength |
60 kv/cm |
|
Relative Permitivity Range |
1.9-2.0 |
|
Dielectric Loss Factor |
2.10 320.103 |
|
Thermal Conductivity |
25mm Section 0.0616 w/m.k. |
|
K-Value |
25mm Section 1.8w/m2k |
|
Coefficient of Dilation at 20°C |
0.6-0.7 |
|
Water Absorption %AGE |
0.7 |
|
Fire Retardency |
Self Extinguishable |
|
Mechanical Strength |
Conforms to C.I.No.5.4 of IS.5133 (Pt-2)-1969 |
|
Stability at High Temp. |
Cl. No. 5.6 of IS:5133 (Pt-2)-1969 |
|
Resistance to Abnormal |
|
|
Heat and Fire |
C.l. No. 9.15 of IS: 8828-1996 |
ADD+ONS
CHOOSE
What You
LIKE
LAMINATES

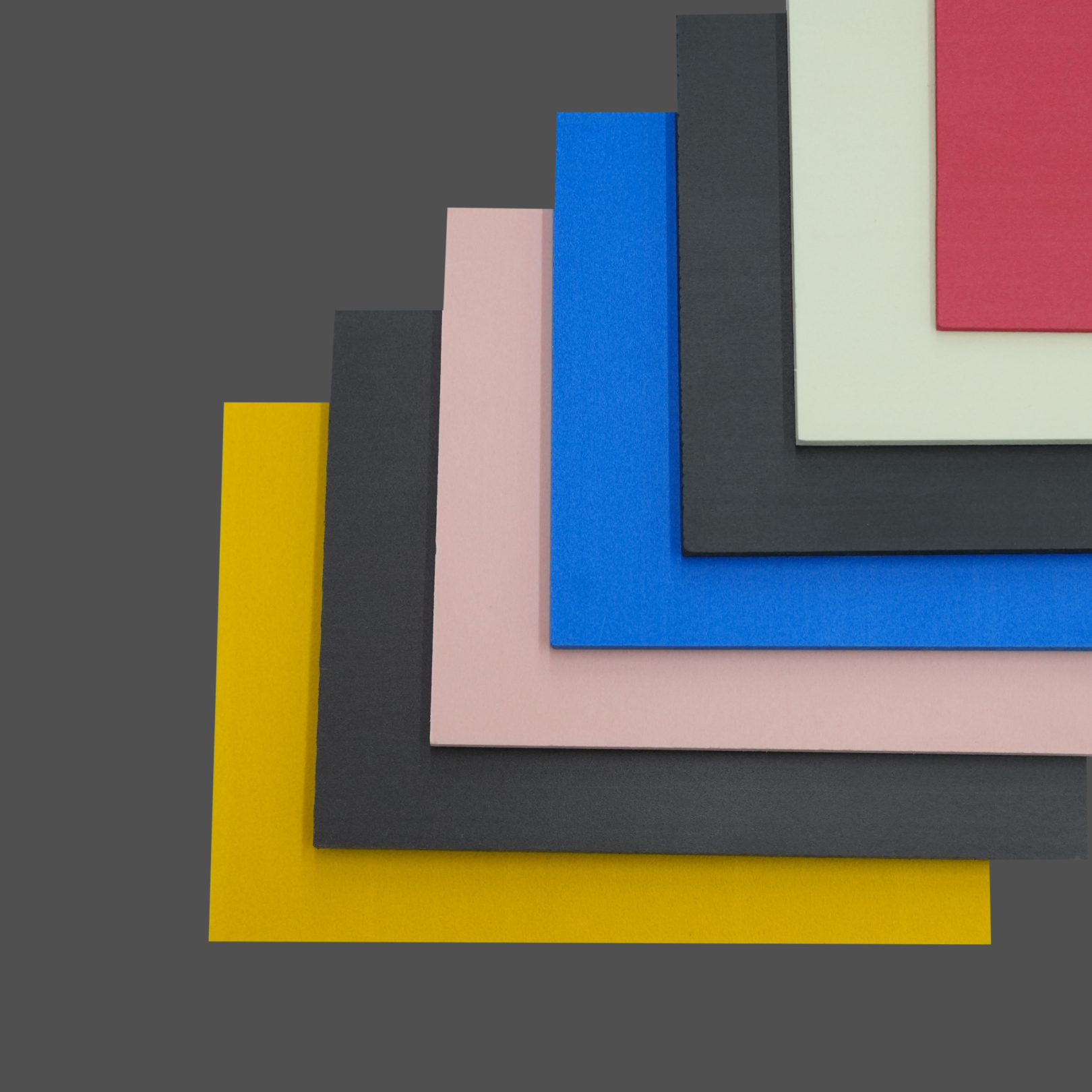

colors
